[RL]Lecture #3 - Planning by Dynamic Programming

• 영상: https://youtu.be/rrTxOkbHj-M
• 강의 자료: Planning by Dynamic Programming



Table Of Content



Planning

• Environment를 앎(Reward와 State Transition을 안다)
• Agent는 Environment를 사용하지 않고 내부적인 계산을 통해 다른 상황을 미리 엿보고 Policy를 개선시켜감



Dynamic Programming

• 복잡한 문제를 푸는 방법론
• 큰 문제를 작은 문제로 나누고 → 작은 문제의 솔루션을 모으는 것
• Requirements for Dynamic Programming
  • 적용하기 위해서 2가지 조건이 필요
    • Optimal substructure
      • Principle of optimality applies
      • Optimal solution can be decomposed into subproblems
    • Overlapping subproblems
      • Subproblems recur many times
      • Solution can be cached and reused
• Markov decision processes satisfy both properties (MDP가 2가지 조건을 만족)
  • Bellman equation gives recursive decomposition
  • Value function stores and reuses solutions



Planning by Dynamic Programming

• Dynamic programming assumes full knowledge of the MDP
  • MDP는 Full Observable Environment(Agent State == Environment State == Information State)이기 때문인듯
• 문제 분류 방법
  • For Prediction
    • Prediction: 미래 평가, 최적의 Value Function을 찾는 것
    • Input
      • MDP <S, A, P, R, γ> and Policy π
      • 또는 MRP <S, P^π, R^π, γ>
    • Output
      • Value Function v_π
  • or For Control
    • Control: 미래 최적화, 최적의 Policy를 찾는 것
    • Input
      • MDP <S, A, P, R, γ>
    • Output
      • Optimal Value Function v_*
      • 과 Optimal Policy π_*



Other Application for Dynamic Programming

• Dynamic programming is used to solve many other problems, e.g.
  • Scheduling algorithms
  • String algorithms (e.g. sequence alignment)
  • Graph algorithms (e.g. shortest path algorithms)
  • Graphical models (e.g. Viterbi algorithm)
  • Bioinformatics (e.g. lattice models)



Policy Evaluation

Prediction 문제

Iterative Policy Evaluation

• Problem: evaluate a given policy π
  • → 이 Policy를 따라갔을 때 Return 얼마 받냐를 알게 되면 Policy를 평가한 것 = Value Function
  • → 즉 이 Policy를 따라갔을 때 Value Function을 찾는 것
• Solution: iterative application of Bellman expectation backup
  • Bellman Equation을 사용해서 Iterative하게 풀 예정
• v₁ → v₂ → ... → v_π
  • 랜덤하게 v₁에서 출발. (예: 모든 State의 Value Function이 0)
  • 이런 식으로 반복하다 보면 v_π에 수렴
• backup: 작업을 잠깐 저장해두는 곳, Like cache
• Using synchronous backups,
  • At each iteration k + 1
    • 매 iteration마다 k가 10이라고 가정하면 즉 for (int k = 0; k > 10; ++k)
  • For all states s ∈ S
    • State가 10개 있다고 가정하자. 모든 State 10개에 대해서(이상한 값으로 초기화되어 있을 거임)
  • Update v_k+1(s) from v_k(s')
    • Bellman Expectation을 사용해서 모든 State의 각 값을 업데이트
  • where s' is a successor state of s
    • 모든 State를 업데이트하는 데 이를 Full Sweep?이라고 함. 모든 State를 한 번씩 업데이트하니까 Synchronous backup
    • s가 갈 수 있는 State들이 s'
• We will discuss asynchronous backups later
• Convergence to v_π will be proven at the end of the lecture
  • 정확한 값에 도달하면 더 이상 값이 업데이트되지 않음

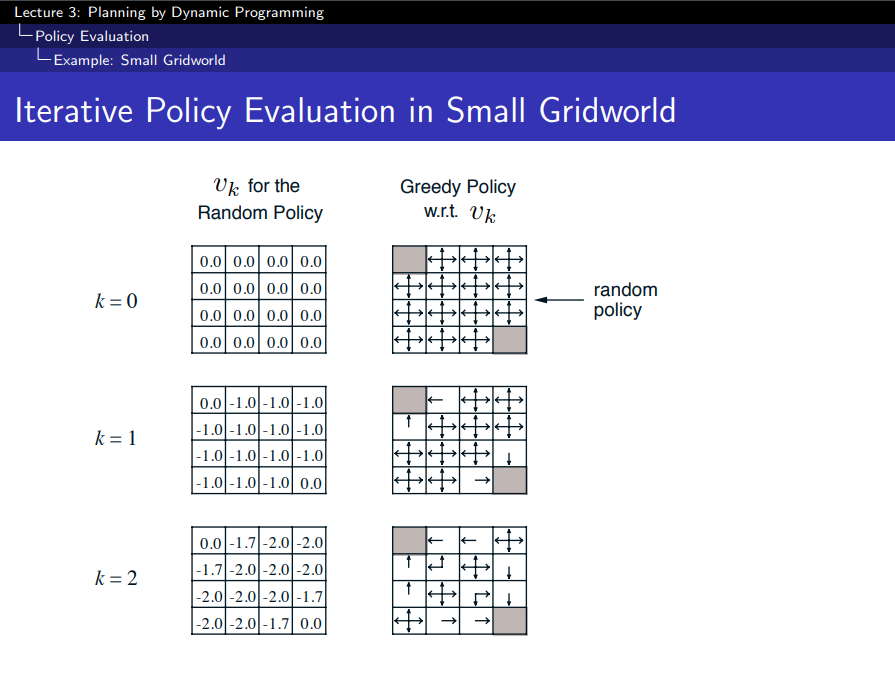

Evaluating a Random Policy in the Small Gridworld

• 동서남북 중 하나로 움직일 확률: 25% → π(a|s) = 1/4
• R_s^a = -1, γ = 1
• example
• k = 1일 때
  • img
  • = (1/4 * (-1 + 1 * 1 * 0)) * 동서남북방향수 = -1/4 * 4 = -1



Policy Iteration

Control 문제

How to Improve a Policy

• Given a policy π (아래 2가지를 반복)
  • Evaluate the policy π(Value Function을 찾고)
    • v_π(s) = E [R_t+1 + γR_t+2 + ...|S_t = s]
  • Improve the policy by acting greedily with respect to v_π (찾은 Value Function에 대해서 Greedy하게 움직이는 새로운 Policy를 만듦)
    • π' = greedy(v_π)
• In Small Gridworld improved policy was optimal, π' = π^∗
• In general, need more iterations of improvement / evaluation
• But this process of policy iteration always converges to π^∗



Policy Iteration



예시) Jack's Car Rental



Policy Improvement

• Consider a deterministic policy, a = π(s)
• We can improve the policy by acting greedily
  • q에 대해서 greedy하게 움직이는 게 π보다 π'이 더 낫다

  •

• This improves the value from any state s over one step,

  •

• It therefore improves the value function, v_π'(s) ≥ v_π(s)

  •

• If improvements stop,

  •

• Then the Bellman optimality equation has been satisfied

  •

• Therefore v_π(s) = v_∗(s) for all s ∈ S
• so π is an optimal policy



Modified Policy Iteration

• Does policy evaluation need to converge to v_π?
• Or should we introduce a stopping condition
  • e.g. e-convergence of value function
• Or simply stop after k iterations of iterative policy evaluation?

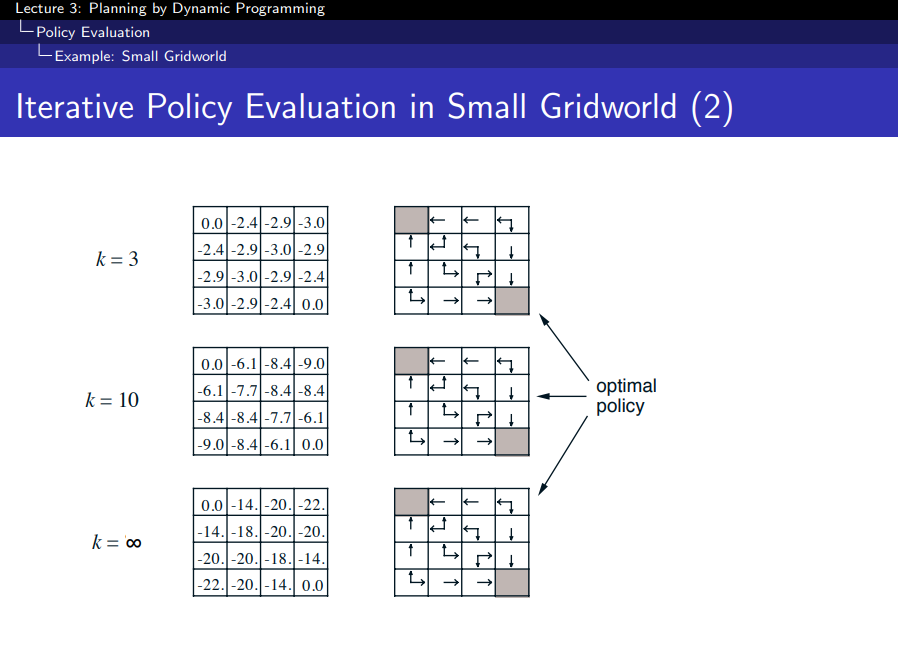

• For example, in the small gridworld k = 3 was sufficient to achieve optimal policy
• Why not update policy every iteration? i.e. stop after k = 1
  • This is equivalent to value iteration (next section)



Generalized Policy Iteration



Value Iteration

Control 문제

Principle of Optimality

• Any optimal policy can be  subdivided into two components
  • An optimal first action A_*
  • Followed by an optimal policy from successor state S'



Deterministic  Value Iteration

• If we know the solution to subproblems v_*(s')
• The solution v_*(s') can be found by one-step lookahead
  • subproblem v_*(s')에 대한 솔루션을 알고 있다면, v_*(s')에 의해 v_*(s)를 찾을 수 있다

  •

• The idea of value iteration is to apply these updates iteratively
• Intuition: start with final rewards and work backwards
  • 최종 Reward에서 시작해서  거꾸로 올라간다
• Still works with loopy, stochastic MDPs



Example: Shortest Path



Value Iteration

• Problem: Find optimal policy π
• Solution: iterative application of Bellman optimality backup
• v₁ → v₂ → ... → v_*
• Using synchronous backups
  • At each iteration k + 1
  • For all states s ∈ S
  • Update v_k+1(s) from v_k(s')
• Convergence to v_∗ will be proven later
• Unlike policy iteration, there is no explicit policy
• Intermediate value functions may not correspond to any policy

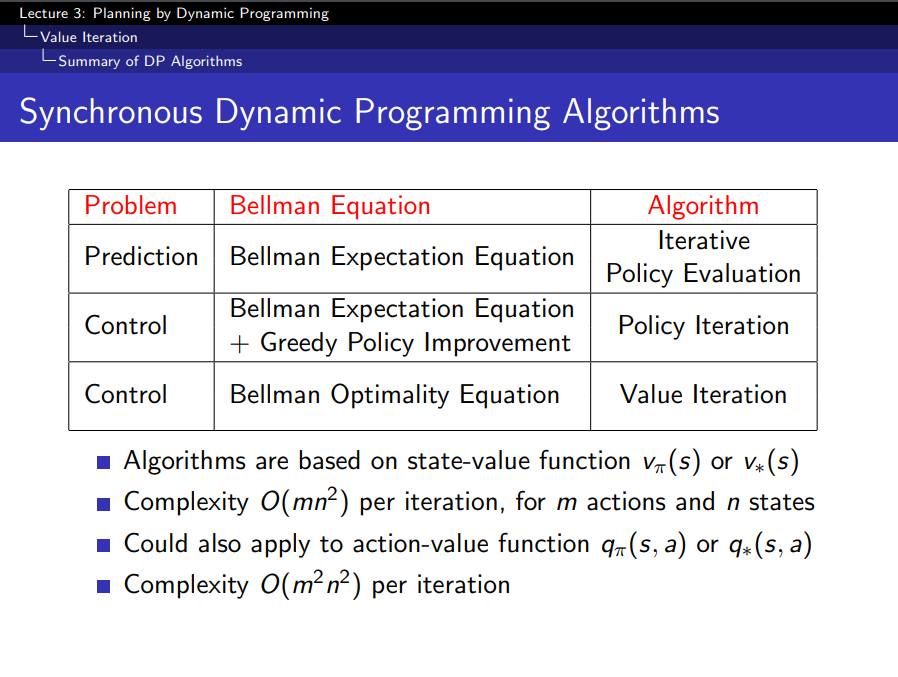

Synchronous Dynamic Programming Algorithms



Asynchronous Dynamic Programming

• DP methods described so far used synchronous backups

  • DP 방법론은 다 synchronous backup을 씀. 모든 State들이 Parallel하게 backup
• i.e. all states are backed up in parallel
• Asynchronous DP backs up states individually, in any order
  • 어떤 State만 backup한다던지, 순서를 다르게 한다던지를 의미
• For each selected state, apply the appropriate backup
• Can significantly reduce computation
• Guaranteed to converge if all states continue to be selected
• Three simple ideas for asynchronous dynamic programming
  • In-place dynamic programming
  • Prioritised sweeping
  • Real-time dynamic programming



In-place Dynamic Programming

코딩 테크닉에 더 가까움

• Synchronous value iteration stores two copies of value function
  • 이전 State와 관련된 Value Function 테이블과 업데이트될 State Value Function 테이블 2개가 필요
• In-place value iteration only stores one copy of value function
  • State 관련 Value Function 테이블을 1개만 갖고 있음. 방금 업데이트된 State를 바로 씀



Prioritised Sweeping

중요한 순서로 State 업데이트, Bellman Error가 큰 State가 중요한 녀석이라고 봄

• Use magnitude of Bellman error to guide state selection,
• Backup the state with the largest remaining Bellman error
• Update Bellman error of affected states after each backup
• Requires knowledge of reverse dynamics (predecessor states)
• Can be implemented efficiently by maintaining a priority queue



Real-Time Dynamic Programming

• Idea: only states that are relevant to agent
  • Agent가 방문했던 State만 업데이트. 앞선 방법은 모든 State에 일괄 적용하기 때문에 Agent 불필요
• Use agent’s experience to guide the selection of states
• After each time-step S_t , A_t , R_t+1
• Backup the state S_t



Full-Width Backups

• DP uses full-width backups
  • 지금까지 배운 방법들은 여기에 속함
• For each backup (sync or async)
  • Every successor state and action is considered
    • S에서 갈 수 있는 모든 S'를 고려한다
  • Using knowledge of the MDP transitions and reward function
• DP is effective for medium-sized problems (millions of states)
• For large problems DP suffers Bellman’s curse of dimensionality
  • 큰 문제에서는 Full-Width Backups를 적용할 수 없음
  • Number of states n = |S| grows exponentially with number of state variables
• Even one backup can be too expensive



Sample Backups

• In subsequent lectures we will consider sample backups
• Using sample rewards and sample transitions <S, A, R', S>
• Instead of reward function R and transition dynamics P
• Advantages
  • Model-free: no advance knowledge of MDP required
  • Breaks the curse of dimensionality through sampling
  • Cost of backup is constant, independent of n = |S|
